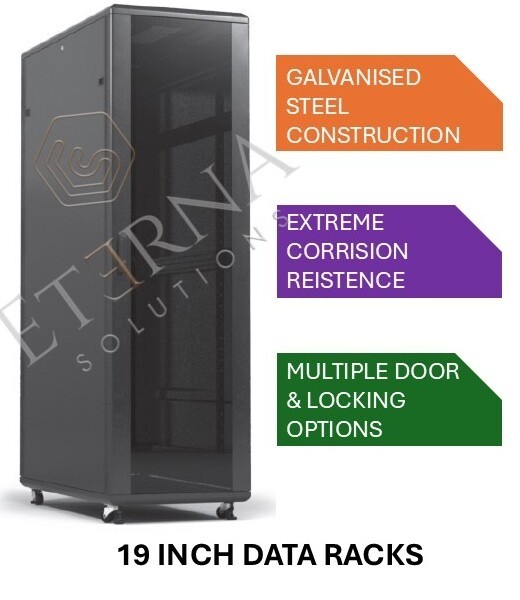

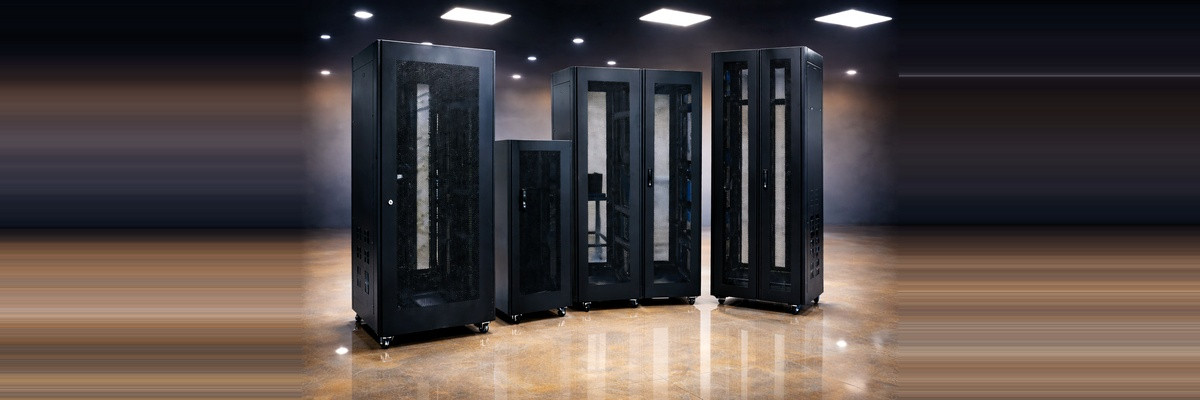

19″ Data Rack Enclosures — Galvanised Steel Server Cabinets for Data Centres, Comms Rooms & IT Infrastructure

High-airflow mesh door cabinets • Welded or flat-pack • 12U to 47U • Manufactured in Noida, India

Eterna data rack enclosures are engineered for the demands of modern data centres, communications rooms, and enterprise server environments. Built from galvanised steel with a three-point lever-latch locking system and 65–85% airflow mesh doors, these cabinets deliver the ventilation density that high-wattage servers, switches, and UPS systems require — while maintaining physical security and clean cable routing. Available in welded (fully assembled) or flat-pack construction, with a choice of single-piece mesh, wardrobe-style split mesh, or tempered glass door options to suit your deployment environment and aesthetic requirements.

The range spans 12U to 47U heights in 600 mm and 800 mm widths with 600 mm or 800 mm depth options, covering everything from a compact comms closet to a full-height data centre row. Every cabinet features fully adjustable 19″ EIA-310-E mounting profiles compatible with all major server and networking hardware, a vented top panel with cable entry provisions, and an earthing strip fitted as standard. Manufactured in our vertically integrated Noida facility — laser cutting, forming, welding, powder coating, and assembly under one roof — with complementing colours and custom sizing available for OEM and enterprise rollout projects.

12U – 47U heights 600 / 800 mm widths 65–85% mesh airflow GI Steel galvanised 3-point locking Welded or flat-pack EIA-310-E 19″ rails 24 models in range

Need a quote for data rack enclosures?
Tell us U-height, width, depth, door type, quantity, and delivery location — we respond within 24 hours.

Request Quote Email Requirements

Get a Quote Photo Gallery

Typical Applications

Data Centres / Comms Rooms 19″ Server Equipment Communication Systems Network Switching / Routing Cloud & Colocation UPS & Power Distribution Enterprise IT Rooms

Enclosure Features

Lever Latch Lock — Three-Point LockingErgonomic lever handle with simultaneous top, middle, and bottom latching. Secures front and rear doors. Key-lockable for restricted access.

65–85% Airflow Mesh DoorsHigh-density perforated mesh for maximum front-to-rear airflow. Compatible with hot aisle / cold aisle configurations. Single-piece or wardrobe-style split mesh options.

Fully Adjustable 19″ Mounting ProfilesFront + rear rail pairs per EIA-310-E. Depth-adjustable in 25 mm increments. Square-hole pattern, cage nut compatible. Accommodates all major server manufacturers.

Vented Top with Cable EntryPerforated top panel for heat exhaust and overhead cable routing. Brush-strip or grommet cable entry options to maintain airflow management.

Full-Length Vertical Cable ManagementOptional integrated cable troughs on both sides of the 19″ mounting plane. Keeps power and data cables organised and separated for clean airflow paths.

Earthing Strip (Standard)Bonded earth bar fitted as standard on every cabinet for proper equipment grounding. Multiple earth points for rack-mount equipment connections.

Lockable Side PanelsOptional quick-release lockable side panels for bay-to-bay separation or standalone security. Tool-free removal for maintenance access.

Transport Castors — Welded or Flat-PackCastor kit included for easy positioning. Available fully welded (assembled) or flat-packed for freight-efficient shipping and on-site assembly.

Full Range of Complementing AccessoriesShelves, blanking panels, PDUs, fan trays, cable rings, brush panels, and more. All designed to fit the EGS data rack range.

The Eterna Advantage

Multiple Door Configurations+

Choose the door style that suits your environment. Single-piece mesh for maximum airflow in hot aisle / cold aisle data centres. Wardrobe-style split mesh for wide equipment access without full door swing clearance. Tempered glass front for visual monitoring in comms rooms. Solid steel rear for perimeter security. All doors reversible left/right hinge.

Bespoke Roof Options for Overhead Cabling+

Standard vented roof, or configure with brush-strip cable entry, multi-grommet panel, or fully open top for overhead cable tray environments. Cable entry cut-outs positioned to match your facility’s cable pathway without on-site modification.

Custom Sizing & Non-Standard Heights+

Need a 22U for a compact comms closet? A 37U to fit under a raised floor plenum? Non-standard depths for specific server platforms? We manufacture custom dimensions through our NPI process — same quality, same lead time framework.

Customer Colours & Finishes+

Standard finish is RAL 7021 (black grey) or RAL 7035 (light grey). Any RAL colour available on request for brand consistency across your data centre estate. Textured, semi-gloss, or matte finishes. OEM white-label with your branding, serial number scheme, and documentation format.

Galvanised Steel — Extreme Corrosion Resistance+

Constructed from galvanised steel with conveyorised pre-treatment and polyester powder coat. Delivers long-term corrosion resistance even in environments with elevated humidity or condensation — far superior to standard cold-rolled steel cabinets that rust at weld points within months.

Vertically Integrated — Manufactured Under One Roof+

Laser cutting, CNC forming, welding, powder coating, assembly, QC, and dispatch all happen in our Noida facility. No sub-contracting. Full control over quality, schedule, and cost. Volume runs or single prototypes — same production line, same standards.

What’s Included & What’s Optional

Standard with every cabinet:

19″ Rails (front + rear) 3-Point Lever Latch Lock Mesh Front Door Vented Top Panel Earthing Strip Transport Castors Powder Coat Finish

Optional add-ons:

Lockable Side Panels Vertical Cable Management Glass Front Door Wardrobe-Style Mesh Door Fan Tray (2/4/6 fan) PDU / Power Strip Fixed / Sliding Shelf Blanking Panels Brush Strip Panel Levelling Feet Custom RAL Colour OEM Branding

Reference Tables

Data Range — Specification & Ordering Chart (24 models)+

600 mm & 800 mm wide enclosures. Specify door type (mesh / glass / solid) and colour when ordering.

Product Code	U Height	Width (mm)	Depth (mm)
EGS-1266	12U	600	600
EGS-1268	12U	600	800
EGS-1866	18U	600	600
EGS-1868	18U	600	800
EGS-2766	27U	600	600
EGS-2768	27U	600	800
EGS-2786	27U	800	600
EGS-2788	27U	800	800
EGS-3266	32U	600	600
EGS-3268	32U	600	800
EGS-3286	32U	800	600
EGS-3288	32U	800	800
EGS-4266	42U	600	600
EGS-4268	42U	600	800
EGS-4286	42U	800	600
EGS-4288	42U	800	800
EGS-4566	45U	600	600
EGS-4568	45U	600	800
EGS-4586	45U	800	600
EGS-4588	45U	800	800
EGS-4766	47U	600	600
EGS-4768	47U	600	800
EGS-4786	47U	800	600
EGS-4788	47U	800	800

Custom U-heights (9U, 15U, 22U, 37U) and non-standard depths (1000 mm, 1200 mm) available through our NPI process. Contact us for bespoke configurations.

Request a Quote for Data Rack Enclosures →
