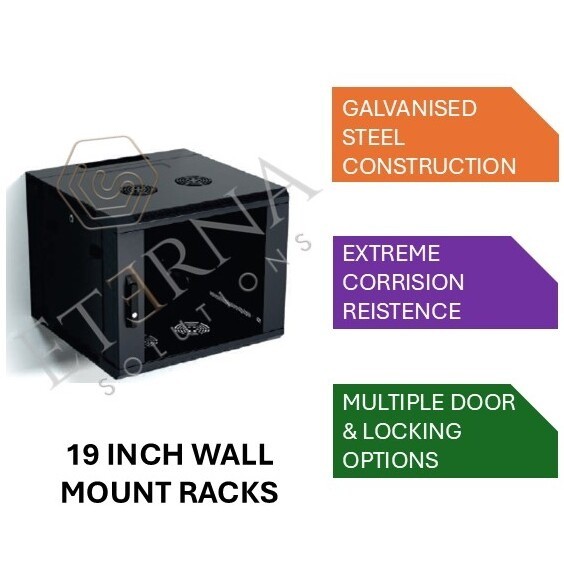

Wall Mount Racks — Compact 19″ Galvanised Steel Cabinets for Schools, Homes, Hospitality & Small IT Setups

Toughened glass door • Quick wall-mount installation • 6U to 21U • Manufactured in Noida, India

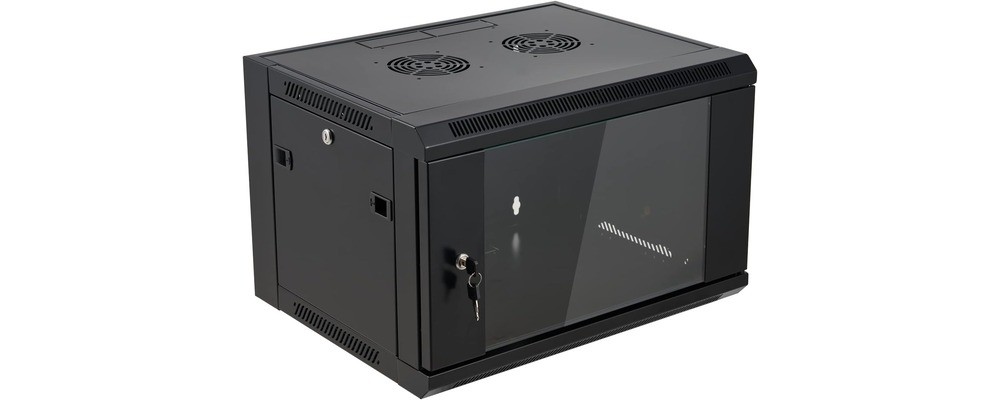

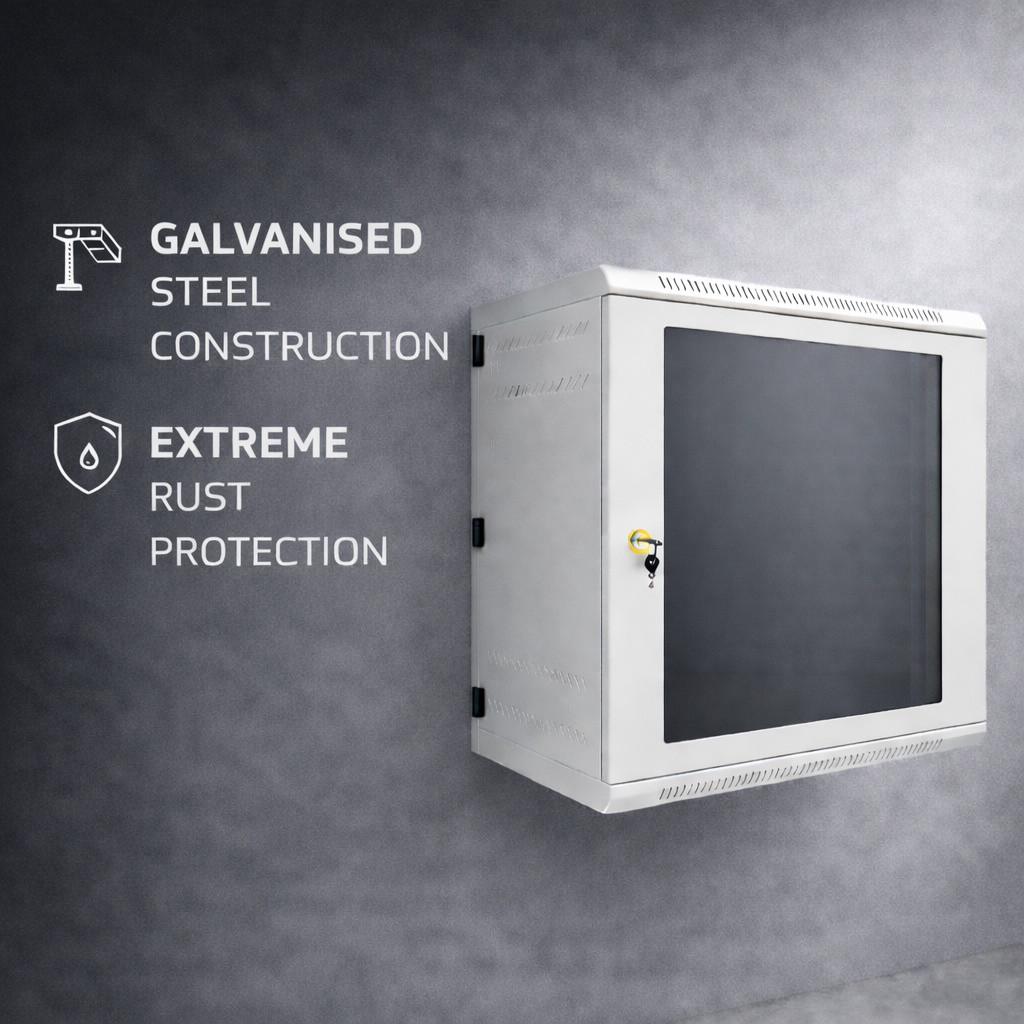

Eterna wall mount racks are designed for environments where floor space is limited but reliable equipment housing is essential — school server closets, hotel back-of-house AV systems, home networking setups, restaurant POS infrastructure, and small-office comms rooms. Compact enough to mount on any structural wall, yet built with the same galvanised steel construction and precision fit-and-finish as our full-height data centre cabinets. The toughened glass front door with single-point locking provides visual access to status LEDs and patch panels while keeping equipment secure from unauthorised access and accidental disconnection.

Available from 6U to 21U in 600 mm width with 400 mm or 550 mm depth options, these enclosures accommodate standard 19″ rack-mount networking switches, patch panels, media converters, small UPS units, and AV equipment. Every cabinet includes wall-mounting hardware, a vented top panel with cable entry, and access to a full range of complementing accessories including shelves, fan units, PDUs, and blanking panels. Constructed from galvanised steel for extreme corrosion resistance — no rusting at weld points, no degradation in humid environments — with powder coat finish in standard or custom RAL colours.

6U – 21U heights 600 mm width 400 / 550 mm depths GI Steel galvanised Glass front door Wall mount hardware included 12 models in range

Need a quote for wall mount racks?
Tell us U-height, depth, quantity, and delivery location — we respond within 24 hours.

Request Quote Email Requirements

Get a Quote Photo Gallery

Typical Applications

Schools & Education Homes & Apartments Hotels & Restaurants Audio Visual Systems Communication Systems CCTV & Access Control Retail & POS

Enclosure Features

Single-Point LockingKey-lockable handle secures the front door. Prevents unauthorised access and accidental cable disconnection in shared or public-access areas.

Toughened Glass Front DoorTempered safety glass for visual access to status LEDs, patch panels, and switches without opening the cabinet. Clean, professional appearance in visible locations.

Lockable Side Panels (Optional)Quick-release lockable side panels for additional security and internal access. Tool-free removal for installation and maintenance.

Vented Top with Cable EntryPerforated top panel for heat dissipation and cable routing. Keeps internal temperature stable for switches and networking equipment.

Wall Mounting Hardware IncludedHeavy-duty wall-mount bracket and fixing kit included as standard. Designed for quick installation on masonry, concrete, or timber-stud walls.

Full Range of Complementing AccessoriesShelves (fixed & cantilever), fan units, PDUs, blanking panels, cable rings, and brush panels — all sized for the EGS-WM range.

The Eterna Advantage

Custom Sizing Available+

Need a non-standard U-height or a narrower cabinet for a tight wall bay? We manufacture custom wall-mount enclosures through our NPI process — modified depths, widths, and internal configurations to match your exact installation constraints.

Customer Colours & Finishes+

Standard finish is RAL 7035 (light grey) or RAL 9005 (black). Any RAL colour available on request — match your wall colour, school brand, or hotel interior scheme. Textured, semi-gloss, or matte powder coat finishes. OEM white-label with your branding and serial numbers.

Galvanised Steel — Extreme Corrosion Resistance+

Constructed from galvanised steel with conveyorised pre-treatment and polyester powder coat. No rusting at weld points, no degradation in kitchens, bathrooms, or humid environments. Far outlasts cold-rolled steel alternatives commonly found in budget wall-mount cabinets.

Vertically Integrated — Manufactured Under One Roof+

Laser cutting, forming, welding, powder coating, assembly, and dispatch all in our Noida facility. No sub-contracting. Consistent quality whether you order 5 units for a school project or 500 for a hospitality chain rollout.

What’s Included & What’s Optional

Standard with every cabinet:

19″ Mounting Rails Single-Point Lock Toughened Glass Door Vented Top Panel Wall Mount Hardware Powder Coat Finish

Optional add-ons:

Lockable Side Panels Fan Unit (1/2 fan) Fixed Shelf Cantilever Shelf PDU / Power Strip Blanking Panels Brush Panel Custom RAL Colour OEM Branding

Reference Tables

Data Range — Specification & Ordering Chart (12 models)+

600 mm wide enclosures. 400 mm & 550 mm depth options. Specify colour when ordering.

Product Code	U Height	Width (mm)	Depth (mm)
EGS-WM-6640	6U	600	400
EGS-WM-6655	6U	600	550
EGS-WM-9640	9U	600	400
EGS-WM-9655	9U	600	550
EGS-WM-12640	12U	600	400
EGS-WM-12655	12U	600	550
EGS-WM-15640	15U	600	400
EGS-WM-15655	15U	600	550
EGS-WM-18640	18U	600	400
EGS-WM-18655	18U	600	550
EGS-WM-21640	21U	600	400
EGS-WM-21655	21U	600	550

Custom U-heights and non-standard depths available through our NPI process. Contact us for bespoke wall-mount configurations.
